Radiofrequency RGB controller with touch remote control. Premium quality

CTRL00030

New

This premium radiofrequency RGB controller is perfectly suited to the Light1 luminous jacket. Is has a long range radiofrequency touch remote control.

More details

21 Items

In stock

By buying this product you can collect up to 4 loyalty points. Your cart will total 4 points that can be converted into a voucher of 0,80 €.


48,33 €

More info

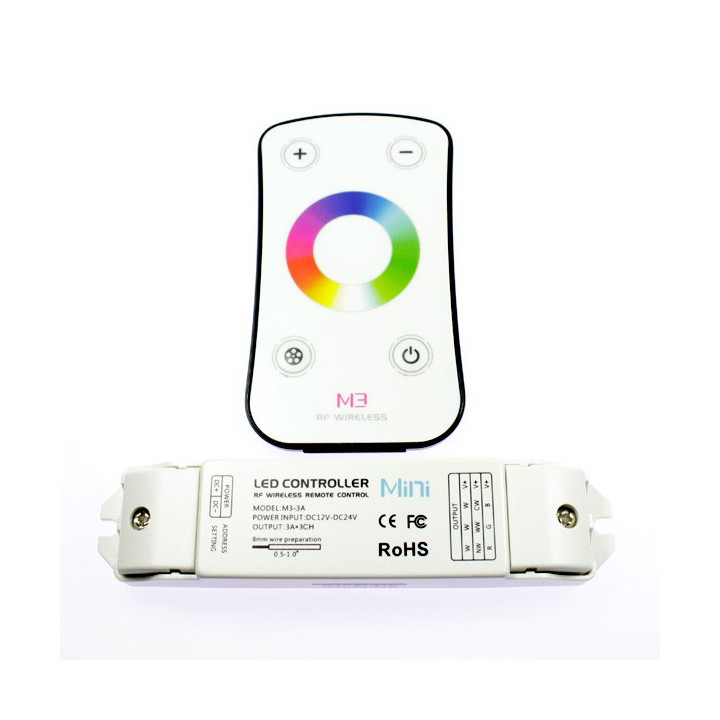

RGB controller with radiofrequency touch remote control:

This premium quality RGB controller with touch remote control is perfectly suited to our Light1 jacket. It will slip easily into its rear pockets. With a weight of only 45 grams, it won't hinder any movement.

The communication protocol used is the radio frequency. The big advantage of this technology lies in the fact that the signal passed on from the remote control to the controller passes through walls and bodies. There is no need to aim as it is the case with infrared technology. Thus, you can manage your own jacket in keeping the remote control in your hand, or give the remote control to a third party who will manage it remotely.

The remote control is touch-sensitive, ergonomic and lightweight (only 42 grams). It will perfectly hold in your hand. Simply slide your finger on the color wheel to set a color. In addition you have sequences and fade programs. You can change the frame rate and increase or decrease the brightness of the RGB led tape, whenever the program is set up on a fixed color.

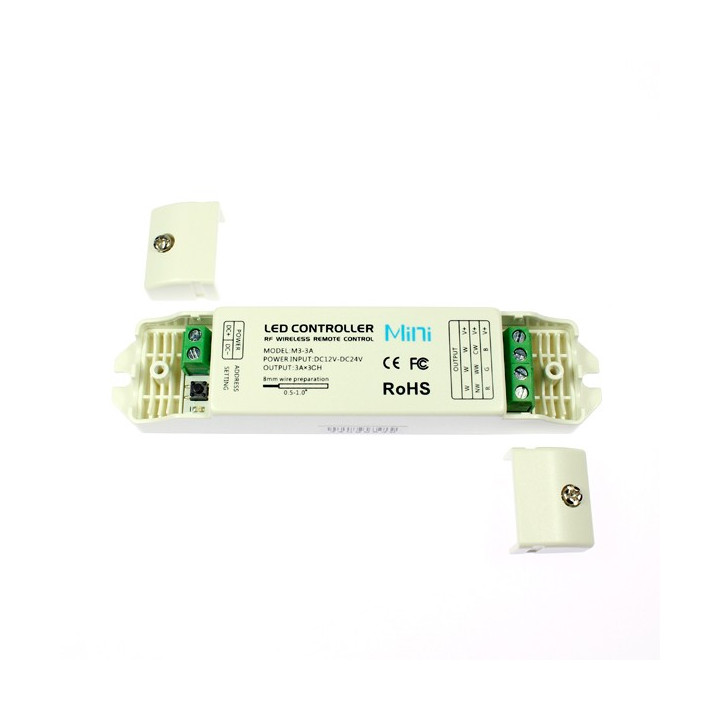

The input and output connections are made with a screw-terminal. The connection to the mini battery will be made via a female jack power connector and the connection to the RGB electric wiring through a female RGB connector with male-male connector. You just have to screw both of them on the terminal block. All the instructions about electric connection are on the controller.

Technical information:

Input voltage:12-24 volts DC
Output voltage:12-24 volts DC
Amperage:9 Amps
Power:108 watts (12V) 216 watts (24V)
Controller size:135mm x 30mm x 20mm
Remote control size:104mm x 58mm x 9mm
Signal range:40-50 m
Used frequency:433.92 Mhz
Connection:screw terminal
Controller weight:45 grams
Warranty:1 year

Features:

  • On / Off
  • Brightness variation for a fixed color
  • Changing of the flashing programs' speed
  • Choosing of the colors via the color wheel
  • Serie of 3 colors: Red > Green > blue
  • Serie of 7 colors: Red > Green > Blue > Yellow > Pink > Cyan > White
  • Combination of 3 colors: Red > Green > blue
  • Combination of 7 colors: Red > Pink > Blue > Cyan > Green > Yellow > White

Lumiwear® is a Néon Flexible company's brand. The Light1 jacket is a registered design and is protected by French law. Any imitator or counterfeiter will be brought before the competent courts.

Data sheet

Accessory typecontroller
