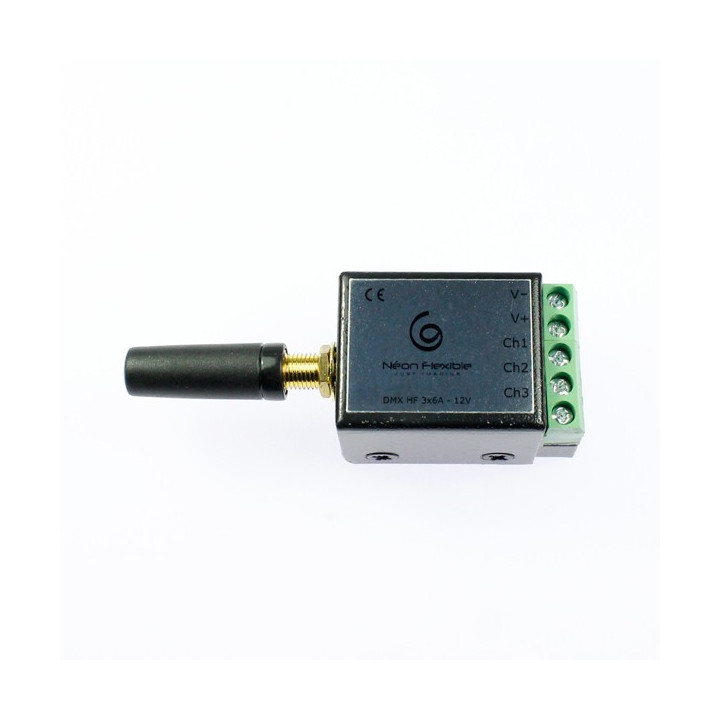

3 channels wireless DMX receiver for RGB LED tape

CTRL00031

New

This 3 channels mini wireless DMX receiver is perfect to manage a RGB led tape. Thanks to it you can remotely control your jacket(s) and create breathtaking shows.

More details

2 Items

In stock

Warning: Last items in stock!

By buying this product you can collect up to 7 loyalty points. Your cart will total 7 points that can be converted into a voucher of 1,40 €.


70,00 €

More info

3 channels wireless DMX receiver:

This wireless DMX receiver works with the DMX transmitter with USB input or the DMX transmitter with XLR3 and USB input. It manages three channels which perfectly matches with the three colors of the RGB led strips. However its features are not limited to this; you can also steer a single colored led tape via a channel, that is to say three tapes with only one receiver. There are many possibilities.

You will be able to vary the brightness of your led strip through your computer or your DMX console by changing the color and creating animations. To do so, we remind you that you definitely need a transmitter.

Tiny and lightweight (only 55 grams) it is ideal for the wireless monitoring of our Light1 luminous jacket. It will easily hide into one of the rear pockets. The signal range reaches 600 meters in open areas and 30 meters in a hostile environment (through walls). Each DMX transmitter can manage up to 170 wireless receivers like this one. It enables you to realize a lot of projects.

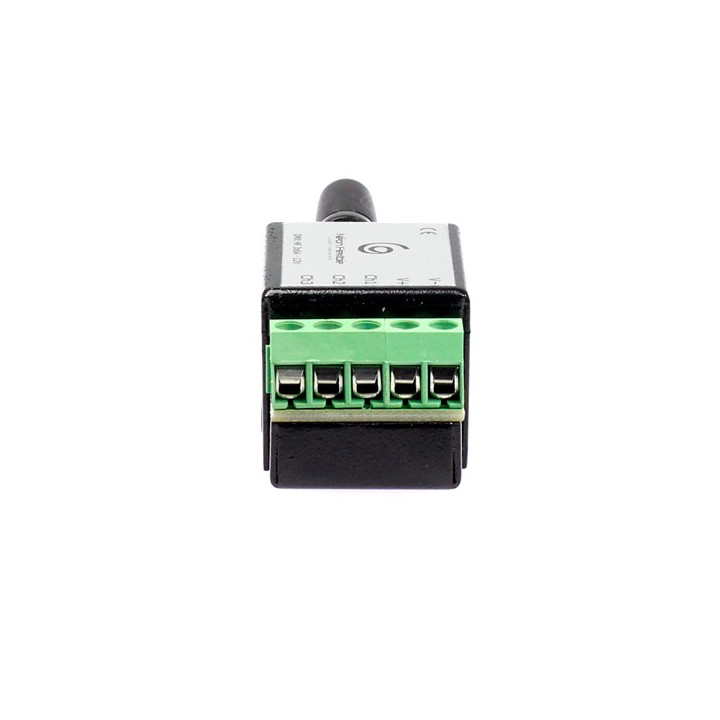

The connection is made with a screw-terminal. The connection to the mini rechargeable battery will be made via a female jack power connector and the connection to the RGB electric wiring through a female RGB connector with a male-male connector.

We developed a wireless DMX tutorial in order for you to discover all the features of this wireless DMX receiver.

We remind you that a basic knowledge of the DMX protocol is needed to use this item. This equipment is delivered with a mini wifi antenna (25mm long).

Technical data:

Input voltage :USB 5 volts DC
Wifi sensitivity (2,4Ghz) :-90db
Frequency :21 (from 2404Mhz to 2483,5Mhz)
Possible universe :

31 (15872 DMX channels)

Size :

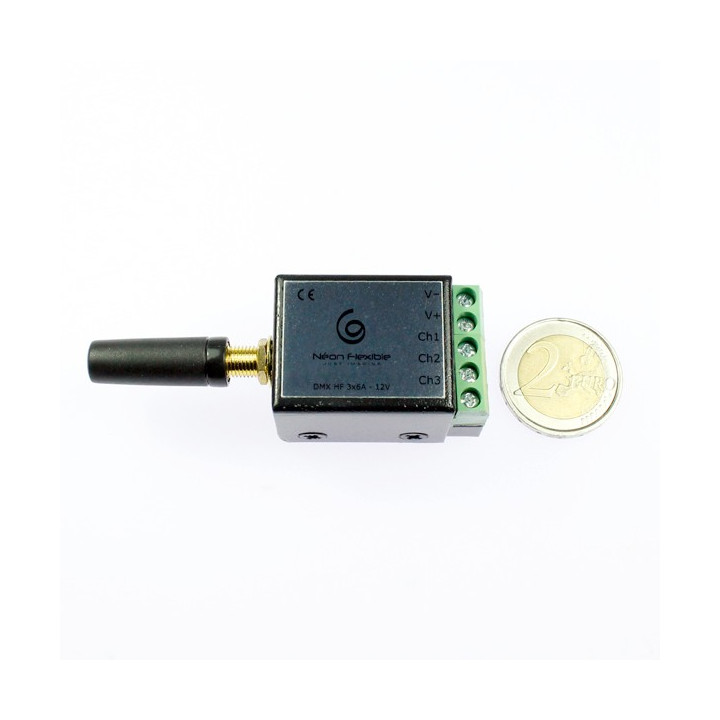

42mm X 25mm X 27 mm (without the antenna)

Weight :55 grams
Signal range in open areas :600 meters
Signal range in hostile environment:30 meters
Warranty :1 year

Lumiwear® is a Néon Flexible company's brand. The Light1 jacket is a registered design and is protected by French law. Any imitator or counterfeiter will be brought before the competent courts.

Data sheet

Accessory typecontroller
