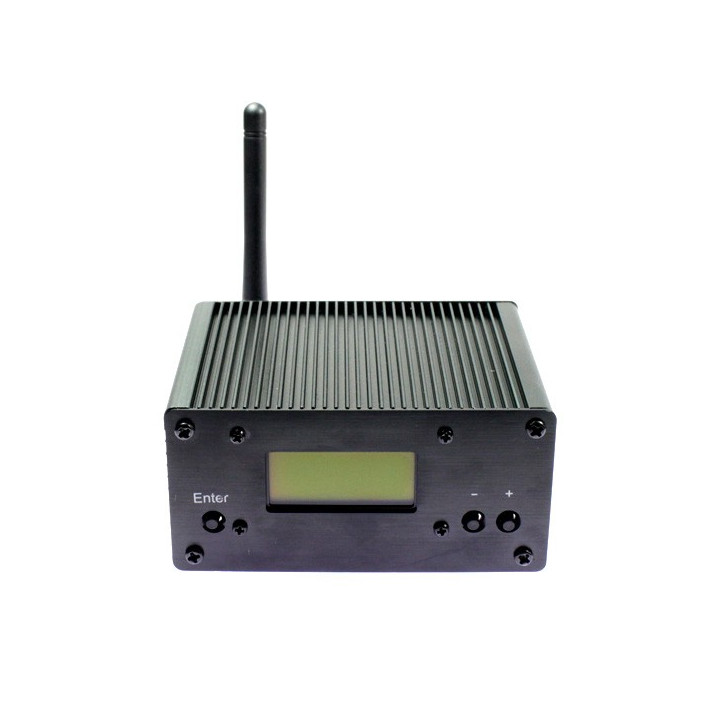

Wireless DMX transmitter with XLR3 and USB input



This wireless DMX transmitter is equipped with the XLR3 and USB dual connectivity. It can be connected on your computer or on your DMX console. It releases 512 channels and manages up to 170 jackets.

More details

3 Items

In stock

Warning: Last items in stock!

By buying this product you can collect up to 22 loyalty points. Your cart will total 22 points that can be converted into a voucher of 4,40 €.

220,00 €

More info

Wireless DMX transmitter with XLR3 and USB input:

With the help of a simple DMX console or a computer and a compatible software, this wireless DMX transmitter will allow you to manage up to 170 wireless DMX receivers (equivalent to 170 DMX jackets). Plus, it is possible to manage the 170 jackets simultaneously, or independently. The USB and XLR3 double connection is provided. Thanks to this system you will be able to create complex shows which were, until now, reserved for professionals. You will also be able to simply realize a light show with your jacket and launch it in automatic mode, the whole thing being synchronized with the music.

This wireless DMX transmitter uses the OPEN DMX protocol. There are two possibilities regarding the connection:

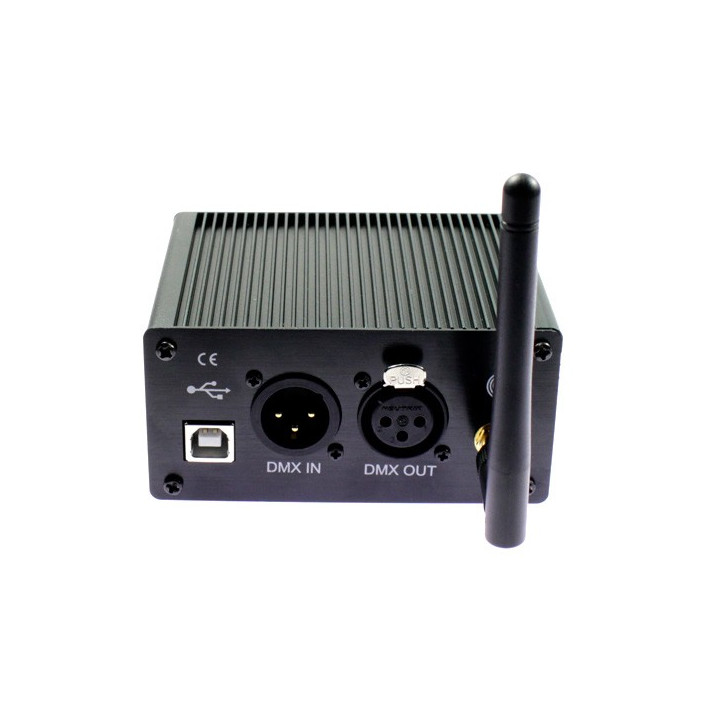

  • Via the XLR3 socket which is directly connected to a classical DMX console.
  • Via the USB socket connected to a computer. It can be used on Mac, as well as PC or Linux. Many free DMX softwares such as QLC+ or Freestyler support this protocol.

It broadcasts the 512 channels, assigns an address to each receiver, allows you to choose your transmit frequency and your universe. All the settings can be changed directly through the screen.

Tiny and lightweight it is easily transportable. It will enable you to:

  • Manage simultaneously or independently one or more Light1 jackets (up to 170)
  • Create your own shows and launch them manually or automatically
  • Synchronize your light shows with the music

We developed a XLR DMX tutorial in order for you to discover all the features of this wireless DMX transmitter.

We remind you that a basic knowledge of the DMX protocol is needed to use this item. This equipment is delivered with a USB cable, a usb/power supply and a wifi antenna.

Technical data:

Input voltage:USB 5 volts DC
Wireless power (2,4Ghz) :20db (100mW)
Frequency :21 (from 2404Mhz to 2483,5Mhz)
Possible universe :

31 (15872 DMX channels)

Size :109mm X 84mm X 45 mm
Weight:270 grams
Signal range in open areas:600 meters
Signal range in hostile environment:30 meters
Warranty:1 year

Lumiwear® is a Néon Flexible company's brand. The Light1 jacket is a registered design and is protected by French law. Any imitator or counterfeiter will be brought before the competent courts.

Data sheet

Accessory typecontroller
